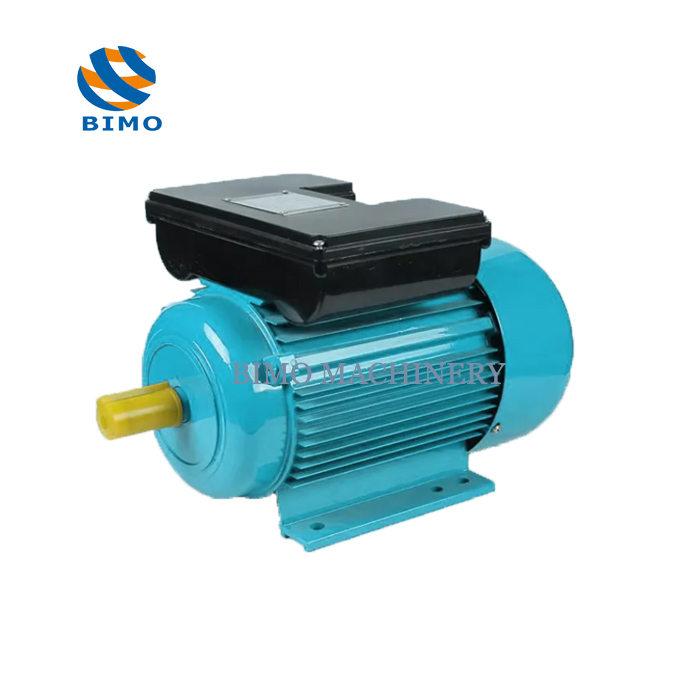

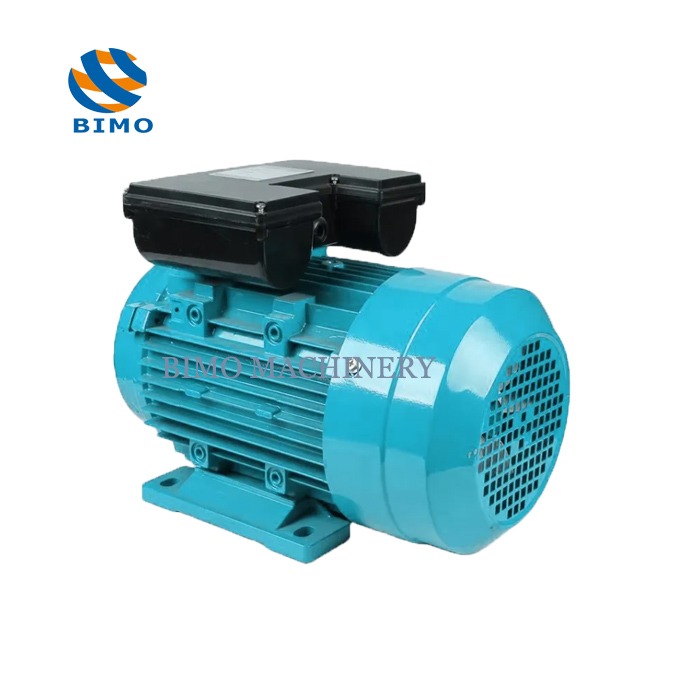

1.5kw Single Phase AC Motor 1500rpm 3000rpm 220V 1HP 3HP 5HP 7.5HP 10HP Electric Motor

Brand Name : BM

Model Number : YL90L-4

Certification : CE

Place of Origin : China

MOQ : 10PCS

Price : USD35-USD120

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 25 days

Packaging Details : Cartons/Pallets

Name : Single Phase Motor

Protect Feature : IP54

Frequency : 50hz

Efficiency : IE 3

Frame Size : 90L

Power : 2hp

Contact Now

2HP 1.5kw AC Motor Single Phase 1500rpm 3000rpm 220V/1HP 3HP 5HP 7.5HP 10HP Electric Motor

1, YL series single-phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard,

2, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc.

3, These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-size machine etc. especially for occasion where only single-phase power supply is available

Franme reference and size	Rated power	Full load sreed in revolutions per minute	Full load current at rated voltage	Exciter Voltage	Efficiency	Power factor	Direct on ine starting torque ratio	Direct on linepull out torque ratio	Diect on line starting current ratio	Mean sound pressure level@1mon noload	Start Capacitor	Running Capacitor	Weight
Type	Output (KW)	Speed (r/min)	Amps (A)	Voltage (V)	EFF. (%)	P.F. Cos	LRT RLT	BDT RLT	LRA RLA	Noise LwdB(A)	(uf/v)	(uf/v)	Weight (kg)
YL711-2	0.37	2800	2.7	220	67	0.92	1.8	1.6	5.5	72	50/250	8/450	10
YL712-2	0.55	2800	3.9	220	70	0.92	1.8	1.6	5.5	72	100/250	15/450	11
YL711-4	0.25	1400	2.0	220	62	0.92	1,7	1.6	5.0	67	75/250	15/450	9
YL712-4	0.37	1400	2.8	220	65	0.92	1.7	1.6	5.0	67	75/250	15/450	10
YL801-2	0.75	2800	4.9	220	73	0.95	1.8	1.6	5.5	75	100/250	25/450	14
YL802-2	1.1	2800	7.0	220	75	0.95	1.8	1.6	5.5	75	100/250	30/450	15
YL801-4	0.55	1400	3.95	220	69	0.92	1.7	1.6	5.0	70	100/250	15/450	13
YL802-4	0.75	1400	5.05	220	71	0.95	1.7	1.6	5.0	70	100/250	25/450	14
YL90L1-2	1.5	2800	9.4	220	76	0.95	1.8	1.6	5.5	78	200/250	40/450	22
YL90L-2	2.2	2800	13.7	220	77	0.95	1.7	1.6	5.5	78	300/250	50/450	24
YL90L1-4	1.1	1400	7.3	220	72	0,95	1.7	1.6	5.0	73	150/250	30/450	21
YL90L-4	1.5	1400	9.7	220	74	0.95	1.7	1.6	5.0	73	200/250	40/450	23
YL100L-2	3	2800	18.2	220	79	0.95	1.7	1.6	6.0	83	350/250	55/450	24
YL100L1-4	2,2	1400	13,9	220	76	0.95	1,7	1.6	5.0	78	300/250	50/450	32
YL100L2-4	3	1400	18,4	220	78	0.95	1.7	1.6	5.0	78	350/250	55/450	33
YL112M-2	3,7	2800	22,1	220	80	0.95	1,7	1,6	6.0	83	350/250	60/450	46
YL112M-4	3.7	1400	22.4	220	79	0.95	1.7	1.6	5.5	83	350/250	60/450	44

1.5kw Single Phase AC Motor 1500rpm 3000rpm 220V 1HP 3HP 5HP 7.5HP 10HP Electric Motor

FAQ

Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
